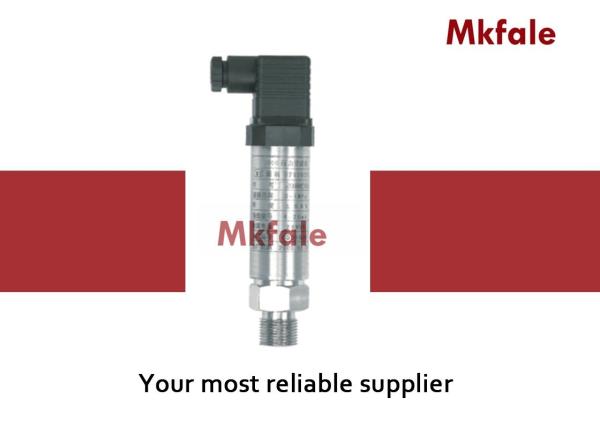

High Stability Diffused - Silicon Portable Digital Pressure Transmitter SMPB8300

Name: High Stability Diffused Silicon Portable Digital Pressure Transmitter SMPB8300
Brand: Mkfale
Price: 1 USD

Brand Name : Mkfale

Model Number : SMPB8300

Place of Origin : China

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5 - 30 Days

Packaging Details : Box

Certification : ISO9001

Accuracy : 0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability

Measuring Range : -1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar

Linear : Superior to 0.25%F S

Response time : ≤ 10 ms

Power supply : 24VDC (or 12 to 36VDC)

Output : 4 to 20mA

Contact Now

SMPB8300 Diffused - Silicon Portable Pressure Transmitter High Stability Transmitter

Technical Specification Table

Type	SMPB8300
Accuracy	0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability
Measuring Range	-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar
Linear	Superior to 0.25%F S
1 year stability	Superior to 0.25%F S
Response time	≤10ms
Power supply	24VDC (or 12 to 36VDC)
Output	4 to 20mA
Load(Ω)	＜(u-12) / 0.02A
Proof pressure	150%F S
Burst pressure	300%F S
Operating Temp	-20 to +85℃
Compensated Temp	-10 to +70℃
Storing Temp	-40 to +125℃
Process connection	M20*1.5 male or 1/2NPT male
Enclosure Protection	IP63
Wetted parts	SS304
Diaphragm material	SS316L
Electrical Connections	DIN43650 Plag Connector
Housing material	Plastic
Power Consume	<0.5W(24VDC)
Local Indicator	-

Why choose us

1: Various style for each products and completely series industry instruments.
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Large stock for fast shipping .

FAQ

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
